GREASE AND STARCH SEPARATORS

GREASE AND STARCH SEPARATORS WITH DESILTER CHAMBER

GREASE AND STARCH SEPARATORS WITHOUT DESILTER CHAMBER

 GREASE AND STARCH SEPARATORS WITH DESILTER CHAMBER

PURPOSE

Highly efficient grease and starch separators for underground installation, designed for separation of starch and fats of plant and animal origin from waste water. The most popular usage:

  •  catering facilities/food industry
  • meet packing facilities, meat processing facilities
  • restaurants, canteens
  • hotels, boarding houses
  • inns, wedding houses
  • fish and chips shops
  • fish processing plants
  • industrial cooking facilities
  • edible oils and margarine production plants
  • canneries
  • peanuts processing facilities
  • fast food producion facilities
  • cake shops, bakeries
  • porter-houses, fast food networks
  • soap and stearin factories

Delfin offers separators with nominal flow from 1,5 l/s to 15 l/s integrated with desliter chamber.

OPTIONS

  • Extension shaft: NSO 600, NSP 950
  • Round adapter – version A, B, C
  • Overflow and fat layer thickness alarms
  •   Anti- foam installation
  •   Solenoid valve for switching on anti-foam installations
  • Additional input for bottom sediment suction without removing the lid (eliminating odors)

TECHNICAL INFORMATION

Flow rate: 1,5 – 15 l/s
Tank voluma: 450 – 10 000 l
Material used: PE-HD
Resistance to fat acids
Easy cleaning
Lifting handles

AVAILABLE VERSIONS

separator tłuszczów



DELFIN ST-O 1,5/200

separator tłuszczów

DELFIN ST-O 2/420

DELFIN ST-O 3/600

separatory tłuszczów

DELFIN ST-O 4/800

DELFIN ST-O 6/1200

DELFIN ST-O 15/5000

Symbol Flow rate
[1/s]
Tank volume
[l]
Inlet/outlet diameter
[mm]
Inflow hight
[mm]
Outflow hight
[mm]
Tank dimension
[mm]
Number of manholes Cover
      D h1 h2 Lz S Hz
ST-O 1,5/200 1,5 540 110 540 500 1300 1000 780 1 PKO 600
ST-O 2/420 2 1550 110 710 660 1530 1000 1220 1 PKO 950
ST-O 3/600 3 2100 160 1020 1080 1530 1000 1590 1 PKO 950
ST-O 4/800 4 3200 160 1090 1090 2250 1000 1600 2 PKO 950
ST-O 6/1200 6 4300 200 1270 1220 2400 1200 1800 2 PKO 950
ST-O 15/5000 15 10000 200 1970 1920 3080 2240 2450 2 PKO 600

*Marketing and technical documents available on request – please ask Export Department

ACCESSORIES

Cover PKP 950

SIZE
L=0,945 m , I=0,745 m



Extension shaft NSP 950

SIZE
L=0,960 m, I=0,760 m, H=0,425 m

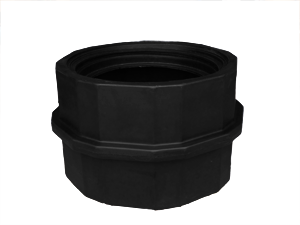

Extension shaft NSO 600

SIZE
Dn=0,60 m, H=0,40 m



Cover PKO 600

SIZE
Dn=0,58

Adapter with one manhole A

SIZE
I= 1006 mm, L=832 mm, G=fi 600 mm, H1=40 mm, H2=150 mm

Adapter with two manholes B

SIZE
I= 1006 mm, L=1622 mm, G=fi 600 mm, H1=40 mm, H2=150 mm, R=200 mm

Adapter with two manholes C

SIZE
I= 1006 mm, L=1707 mm, G=fi 600 mm, H1=40 mm, H2=150 mm, R=285 mm

CHOOSE DELFIN

  • 10-year warranty for the tanks
  •  Tanks made of high density polyethylene (PE-HD) which guarantee strenght and resistance to fatty  acids
  • High resistance to temperature changes
  • Easy transport – each tank is fitted with handles
  • Simple montage
  •  Quality of treated wastewater complian with the regulations
  •  Alarm systems
  •  Efficient operation and maintenance
  • Low emptying cost due to optimal tank volumes
  • Polyethylene covers or cast iron manhoIes
